Measuring scales in mm/radius/angle or mm/inch

Product No.:
97201
Available! Available! (approx. 2-3 days)
£ 77.50

excl. Shipping costs

Description
Technical details

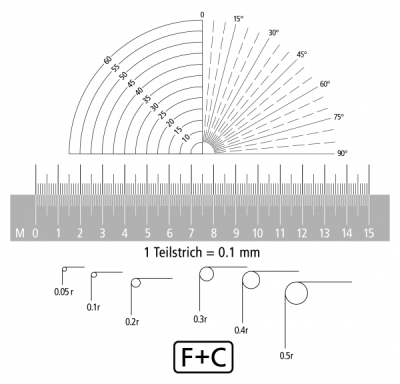

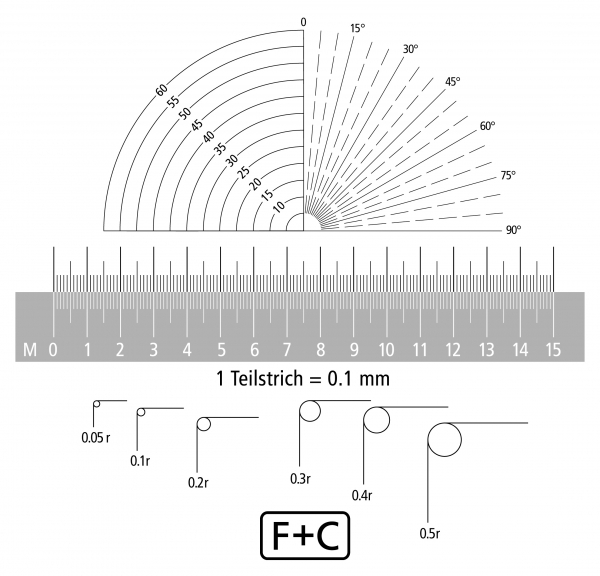

Scale mm and radius:
  • Measuring range: 15 mm
  • Measuring accuracy: 0.05 mm
  • Scaling: 0.1 mm
  • Angle: 0° - 90° in 5° increments
  • Radiuses: 0.05-0.6 mm in 0.05mm increments
  • Diameter: 0.05 – 0.6 mm 0.05/0.1/0.2/0.3/0.4/0.6

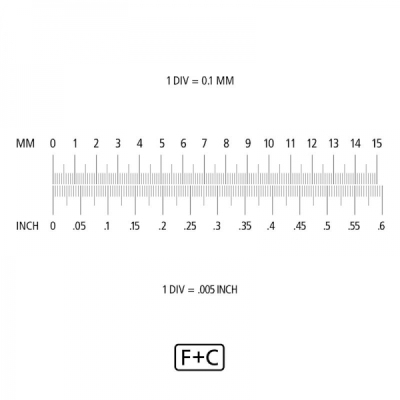

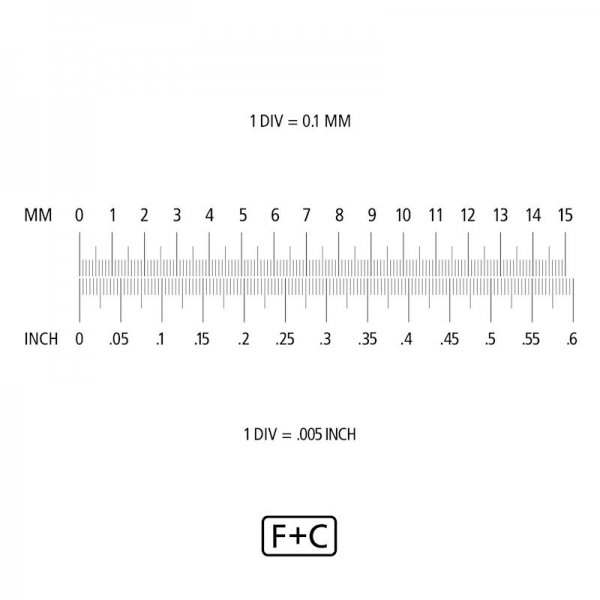

Scale mm- and inch:
  • Measuring range: 15 mm and 0.6 inch
  • Measuring accuracy: 0.05 mm and 0.0025”
  • Scaling: 0.1 mm and 0.005”
  • Reticle: in glass, with high vacuum metallized chrome scales, giving them great chemical and mechanical resistance
​Made in Switzerland
Image source: F+C Optik
