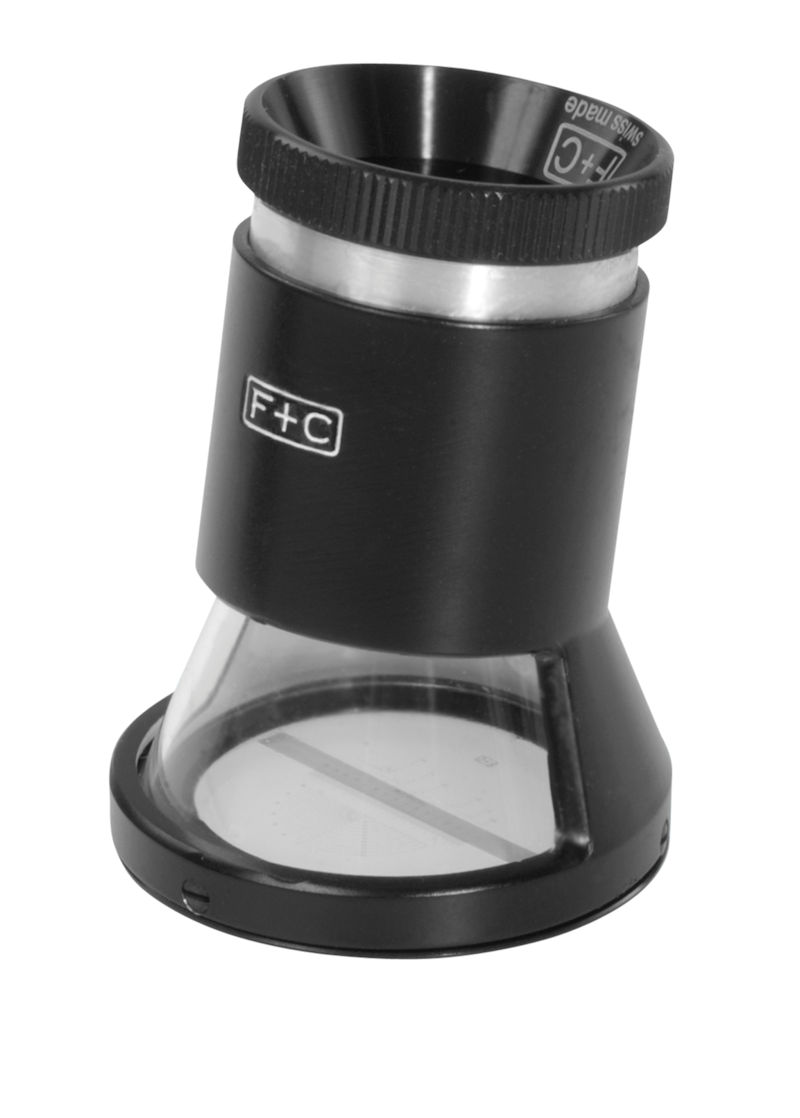

The practical, well thought-out design of our high quality scale magnifier F+C provides you with a multitude of applications for the precise measuring of:
· Scripts, line thicknesses, distances on plans and drawings, etc.
· Drillings, hole spacing, profile gauges, facets, angles, etc.
The consistently further developed, tried and tested scale magnifier is placed directly onto the object to be measured, the length can then easily be read off the precision scale built in on the bottom. Focusing makes it possible to adapt to the user's individual vision.
The inclined position of the scale magnifier gives the visual field additional light providing you with an excellent view. Light falls through a special transparent glass, which at the same time protects the measuring scale. The excellent sharpness in the reading field is achieved with the triple-lens. The scale magnifier comes in a break-proof case.

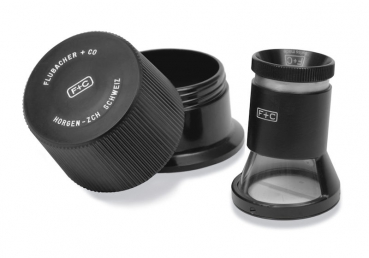

Delivery: The scale magnifier comes in a practical, break-proof plastic case.

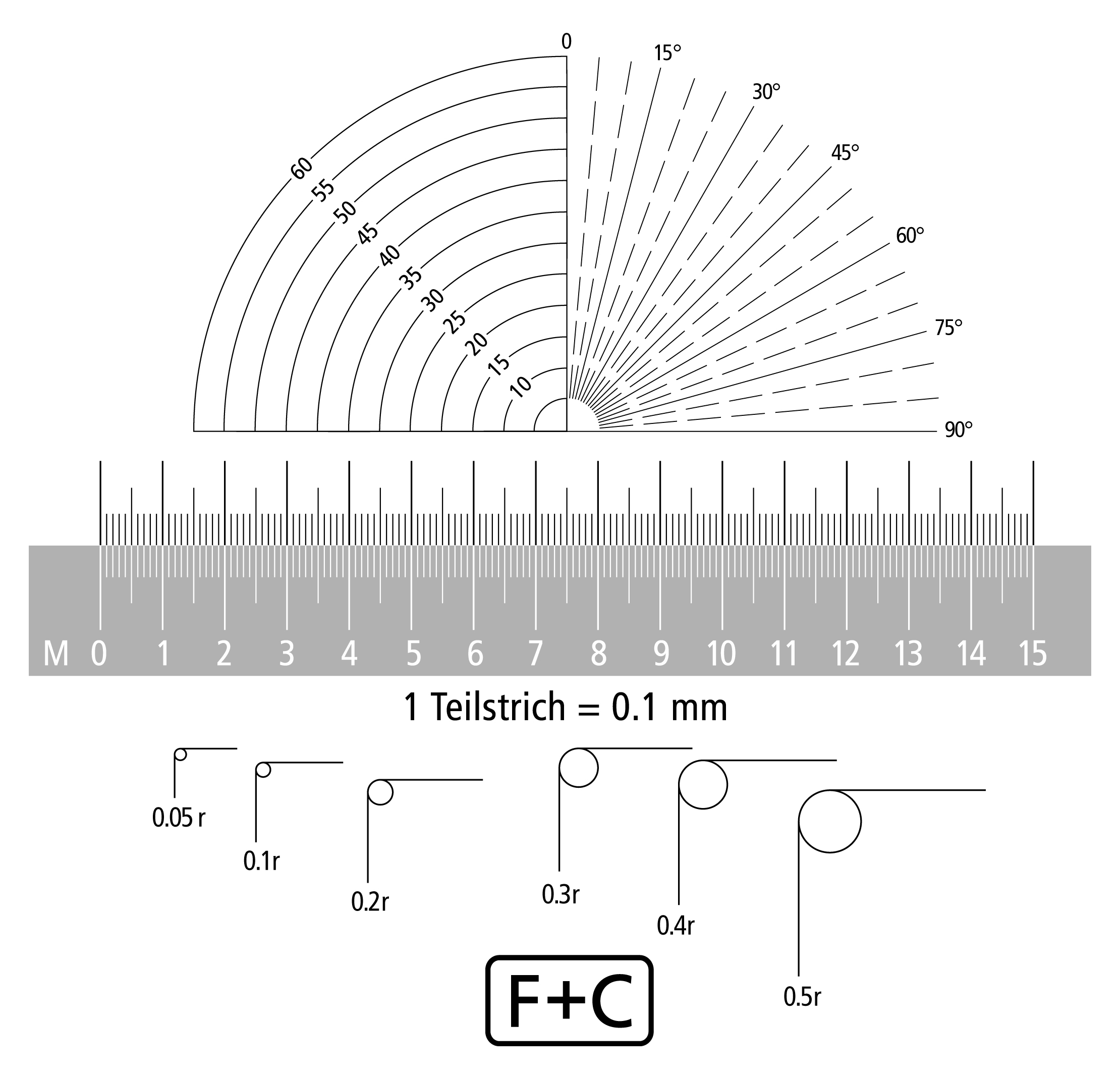

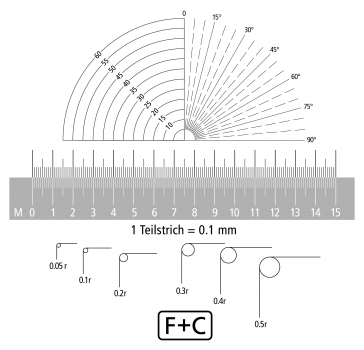

RETICULES
Thanks to the special design of the measuring gauge it is possible to measure on both light and dark objects. The lengthwise covering of the lower part of the measuring gauge makes it opaque and thus also visible on dark objects. The markings, which have been extended beyond the cover, are ideally used as sensors in the same manner as measuring jaws of a micrometer or a caliper.
