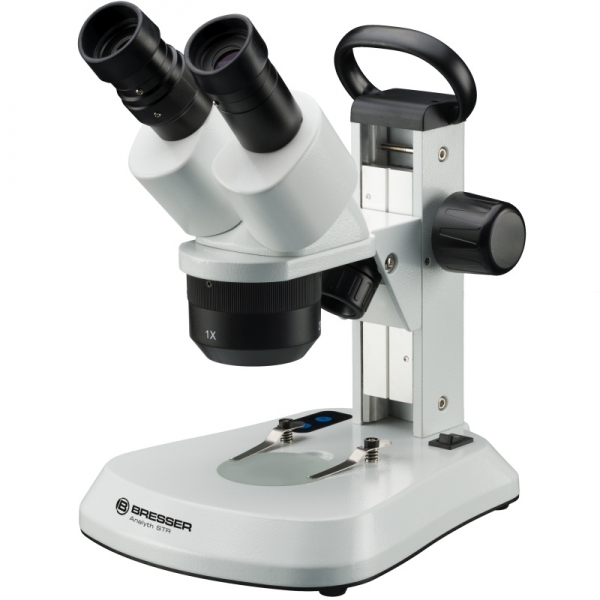

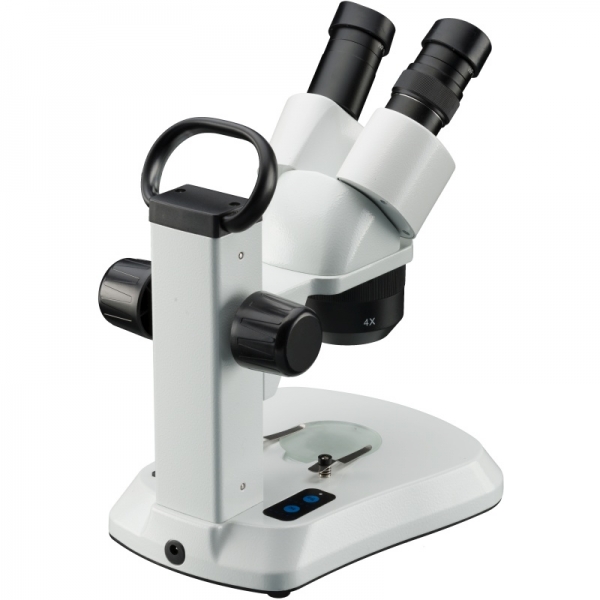

The
Analyth STR comes with 3 different magnifications, that can
easily be switched by turning the objective. It is easy to change magnifications from
10x to 20x or 40x. The stereo microscope will
show structured objects nicely in 3D, which is especially impressive. The
low starting magnification of 10x is helpful when working with children and will show objects in full up to a size of 20mm. With the
wide magnification range, the Analyth STR is a
versatile instrument. You can use it to view
insects, plants, minerals and much more. It is useful for hobbyists, in schools and more. Typical professional applications include
quality control, gardening or farming (pest control), hydrobiology and much more.
The interpupilllary distance and the diopters can be adjusted to your needs. The eyepieces feature a
big field of view of 20mm. They are equipped with
rubber eyecups and have a
locking screw to prevent loss or damage during transport.
The power supply can be achieved through the
AC adapter or with a
set of 3 AA type batteries (batteries not included). This makes the microscope perfect for
mobile use, e.g. outside in the garden or for biology
field work.
FEATURES
- Microscope with 3 pairs of objectives, objective magnifications 10x; 20x; 40x
- Wide field eyepieces with eyecups and 20mm field of view
- Bright, economical LED illumination, angle adjustable
- Illumination for incident and transmitted light can be switched separately
- Dimmer operation via a foil switch with status display
- Two specimen plates (black/white or glass matt), with specimen clips

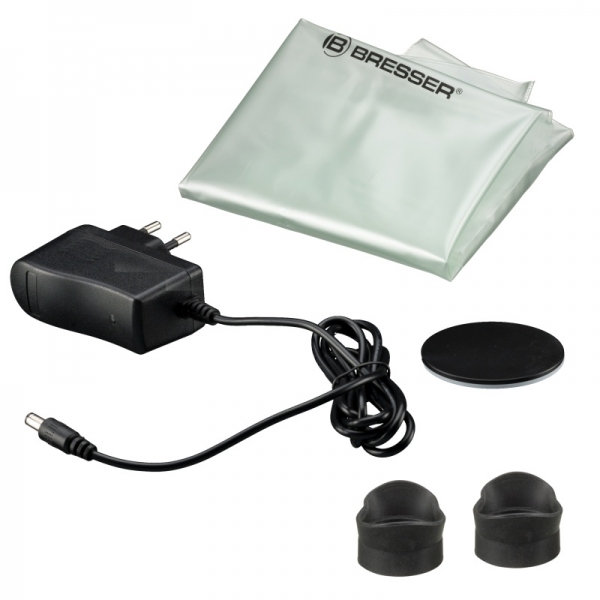

SCOPE OF DELIVERY
- Microscope with 3 magnifications, 10x; 20x; 40x
- Metal stand with LED illumination, power supply and battery compartment
- 2 eyepieces with rubber eyecups
- Glass object plate
- Plastic object plate (black/white)
- Dust cover
- Operating instructions
