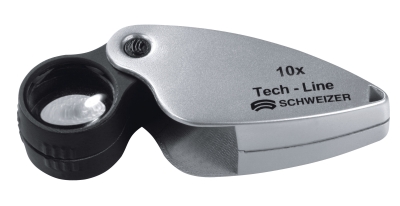

Tech-Line Precision Magnifier - Aplanatic+
Pure innovation: this is the first magnifying glass with an intuitive single-hand operation design. Its intelligent shape supports steady holding and gives the surface a perfect feel - a clear advantage when it comes to higher magnifications or when you have just one hand at your disposal.
Features:Fitted in the low-reflection, shock-resistant base, the focusable aplanatic lens system fulfills highest optical requirements! The optics are made from silicate glass, which is very scratch-resistant, has a very high resolution (very sharp!) and produces an extremely high contrast image- Schweizer uses UV absorbent optical crown glass as used with prescription lenses (refractive index n=1.52).
The housing is shock-resistant and has a low-reflection surface. It is also coated with a special 2-component coating, which makes it scratch-resistant. Additionally, this coating is resistant to hand perspiration and nearly all chemicals and solvents.
Is 20x magnification too much? Please click here, also for information on Product Bundle...
Need a complete Set? See Professional Set (above).
Art No. Magnification Diameter Lens Type
09606 6x 22.8 mm aplanatic/glass
09608 8x 22.8 mm aplanatic/glass
09610 10x 22.8 mm aplanatic/glass
09615 15x 22.8 mm aplanatic/glass
09620 20x 16.3 mm aplanatic/glass
Mag. / Working distance / Field of view
6x 30mm 22mm
8x 25mm 20mm
10x 20mm 18mm
15x 10mm 13mm
20x 5mm 9mm
High Professional Product Made in Germany
- Housing/Casing
Low reflection surface
Shock resistant
Resistant to hand perspiration
Resistant to chemical/solvents
Scratch resistant two-componant coating
- Lens/Optics
Aplanatic lens-system
Scratch resistant
High resolution (very high sharpness)
High contrast image
- Magnification
6x, 8x, 10x, 15x or 20x
Tech-Line is synonymous with technically demanding products which meet the requirements for high-quality optics, ergonomic handling and sturdy materials which are suitable for daily use.
Discover the variety
By developing the Tech-Line Series, SCHWEIZER created an ultra-modern magnifier generation, which combines the following features.
The Tech-Line Series has been professionally adapted for the demanding requirements & conditions of any work environment.
Additional performance:
High quality, aplanatic silicate glass optics. In the low magnification range, biconvex optics / bifocals are used.
- The silicate-glass optics used in Schweizers Tech-Line magnifiers are 100% manufactured in Germany. Not only do they contain the best optical features, they are also very scratch-resistant! (especially in comparison with plastic lenses).
- All magnifiers with a silver coating are coated with a special 2-component-coating:
Resistant to hand perspiration.
Resistant to nearly all solvents/chemicals.
Very hard and plane surface, scratch-resistant and easy to clean. - Schweizer uses environmentally-friendly, energy-saving and extremely long-life high-performance LEDs (light colour approx. 6000 K).

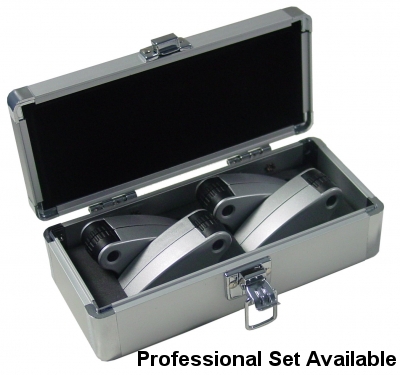

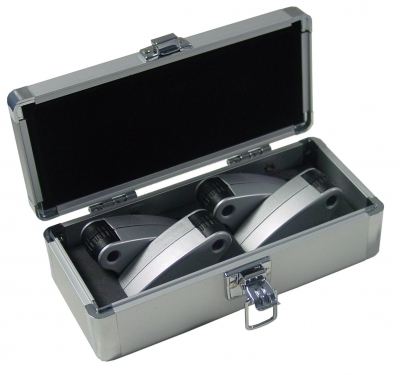

Tech-Lens precision hand lens Professional Set
Magnifications: 6x, 10x, 15x and 20x
