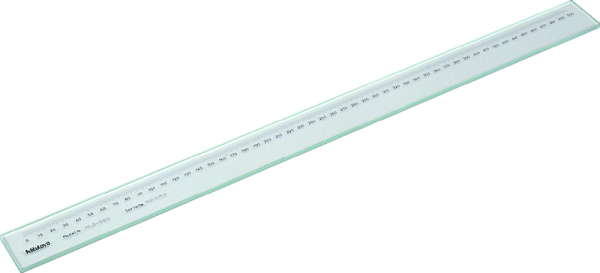

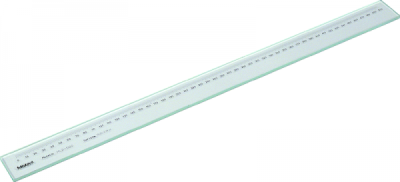

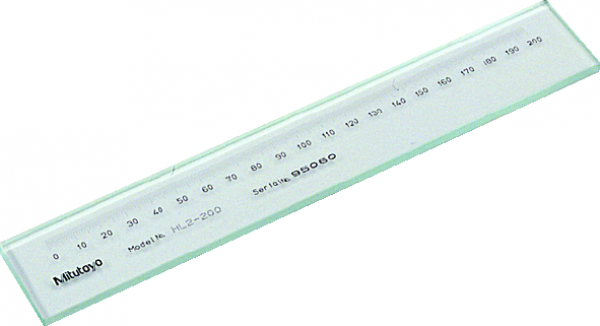

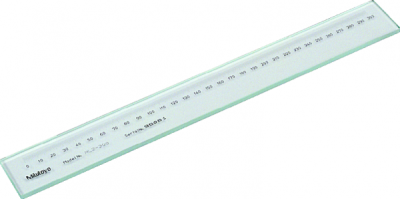

Mitutoyo Working Glass Scale + Inspection Cert., 0.5mm

Mitutoyo Working Glass Scale + Inspection Cert., 0.5mm

Name: Mitutoyo Working Glass Scale + Inspection Cert., 0.5mm
Price: 1020.35 GBP
Availability: InStock

Measuring length:

£ 1,020.35

Description

These high precision glass scales offer you the following benefits:

They are manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
They are ideal for checking the magnification accuracy of profile projectors and microscopes, as well as the table feed accuracy of measuring equipment.

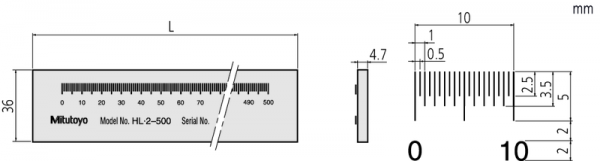

Technical Data

Art.Nr.:	41452	41455	41457	41458	41459
Mitutoyo Prod. No.	182-521-10	182-522-10	182-523-10	182-524-10	182-525-10
Range:	0 - 100 mm	0 - 200 mm	0 - 300 mm	0 - 400 mm	0 - 500 mm
Graduation:	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Thickness of graduation line :	50 µm	50 µm	50 µm	50 µm	50 µm
Delivered:	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection
Mass:	0.27 kg	0.32 kg	0.57 kg	0.71 kg	0.86 kg
Accuracy:	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)	(1.5+2L/1000) µm L = measured length (mm)
Material:	Sodium glass	Sodium glass	Sodium glass	Sodium glass	Sodium glass
Thermal expansion coefficient:	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K
Inch-Metric:	Metric	Metric	Metric	Metric	Metric
