Mitutoyo Working Glass Scale + Inspection Cert. 0.1mm

Mitutoyo Working Glass Scale + Inspection Cert. 0.1mm

Name: Mitutoyo Working Glass Scale + Inspection Cert. 0.1mm
Price: 952.48 GBP
Availability: InStock

Measuring length:

£ 952.48

Description

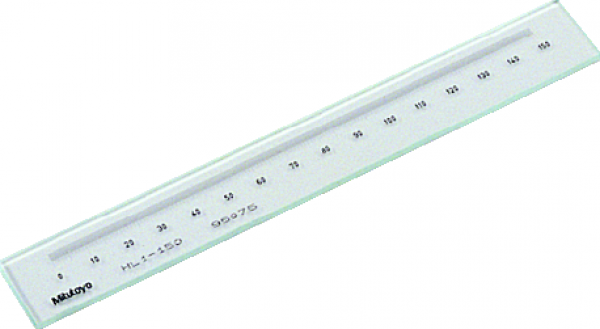

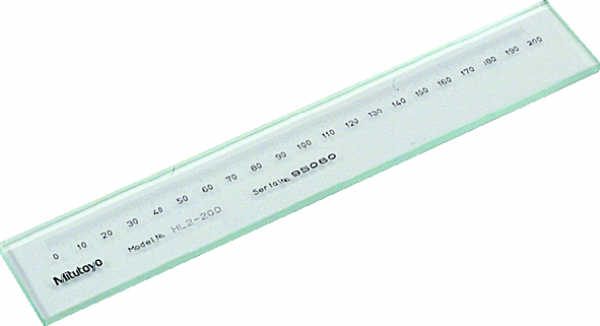

These high precision glass scales offer you the following benefits:

They are manufactured using Mitutoyo’s leading-edge Linear Scale production technology.
They are ideal for checking the magnification accuracy of profile projectors and microscopes, as well as the table feed accuracy of measuring equipment.

Technical Data

Art.Nr.:	41450	41451	41453	41454
Mitutoyo Prod. No.	182-511-10	182-512-10	182-513-10	182-514-10
Range:	0 - 50 mm	0 - 100 mm	0 - 150 mm	0 - 200 mm
Graduation:	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Thickness of graduation line :	20 µm	20 µm	20 µm	20 µm
Delivered:	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection	In a wooden case with certificate of inspection
Mass:	0.23 kg	0.24 kg	0.35 kg	0.36 kg
Accuracy:	(1,5+2L/1000) µm L = measured length (mm)	(1,5+2L/1000) µm L = measured length (mm)	(1,5+2L/1000) µm L = measured length (mm)	(1,5+2L/1000) µm L = measured length (mm)
Material:	Sodium glass	Sodium glass	Sodium glass	Sodium glass
Thermal expansion coefficient:	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K	(8±1) x 10^-6/K
Inch-Metric:	Metric	Metric	Metric	Metric
